Below is the list of selected projects completed in the recent months
Upgrade of multiple gravimetric blenders by installing WXLB control system
on each individual blender. The WXLB system is designed to work with a single
blender and handles up to 8 components.
The project resulted in significant increase in throughput and accuracy. Our proprietary "HIGH ACCURACY" blending mode allowed to dose expensive resins with superior accuracy. The recorded process statistics helped establish a modern product quality control process.

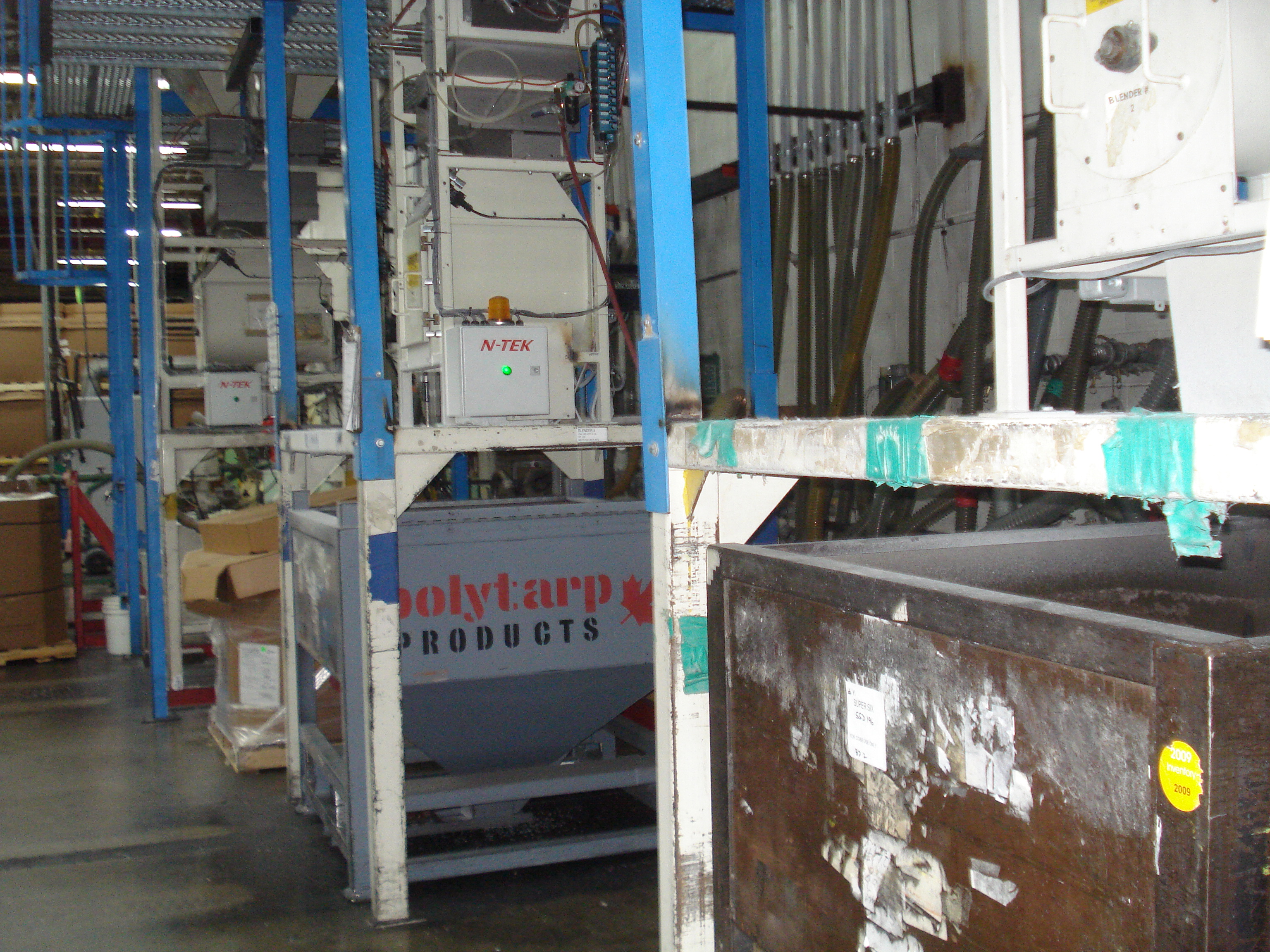

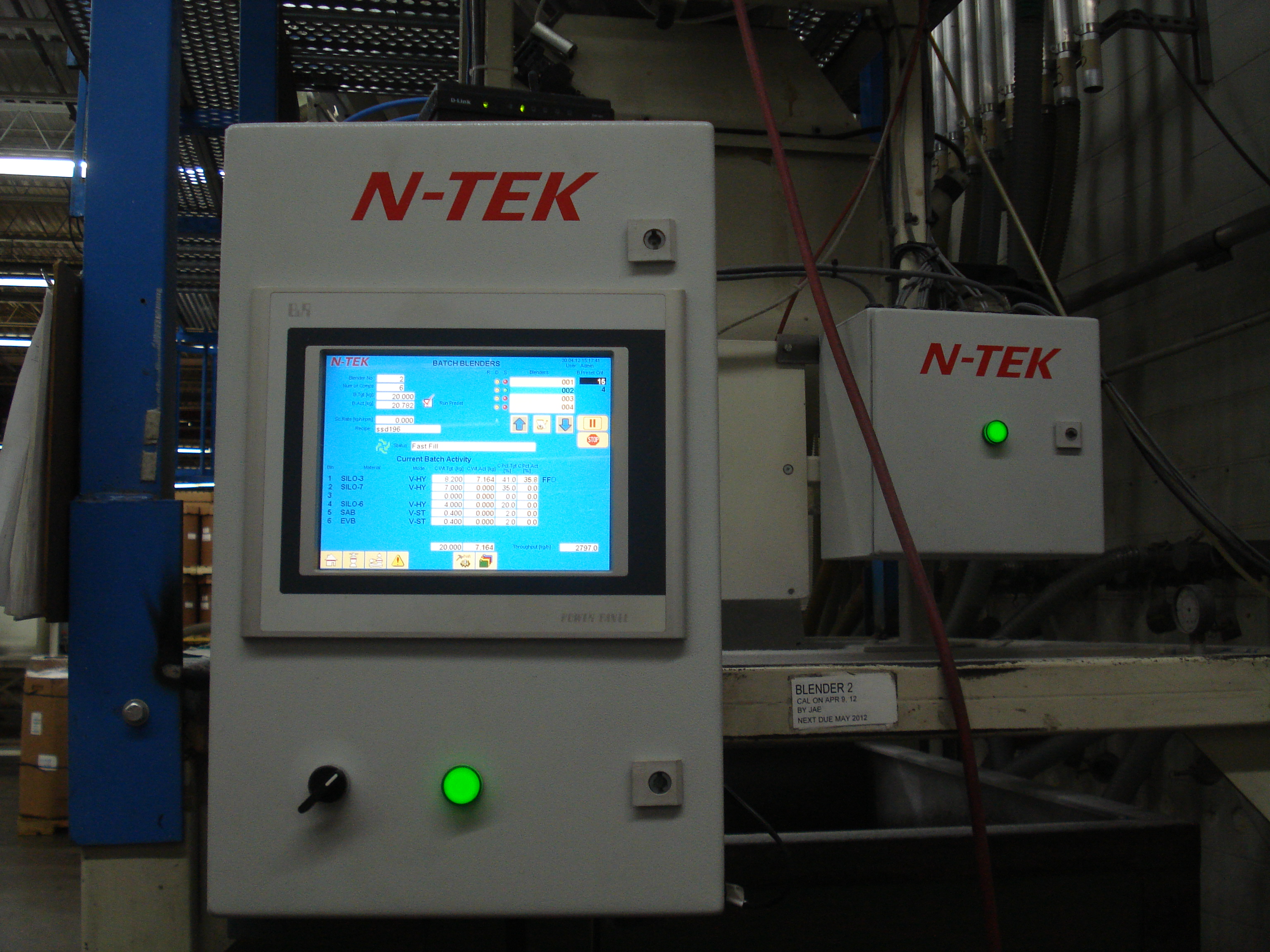

INTELECS™ BATCH installation integrating 4 large Mould-Tek 8-component
gravimetric blenders. All basic features such as alarm handling, local recipe
storage, user-based security, material consumption reports and material database
The control system also handles 30 loaders serviced by 4 pumps and manages resin distribution from central material storage silos to each blender.
The system is connected to the INTELECS™ HISTORIAN server that stores results for each batch in a relational database and provides software tools for data visualization and analysis. A serial printer is attached directly to the controller for printing the reports. A second INTELECS™ BATCH controller is supplied to provide full system redundancy.
Upgrade of multiple Mould-Tek gravimetric blenders by installing WXLB control
system on each individual blender. The WXLB system is designed to work with
a single blender and handles up to 8 components.
